Moving Optics...

Consume five times less the energy with same high end performance #MovingOptics

Available now, single mirror deflection system

inspiring your creativity

RLA-A30

Product Presentation

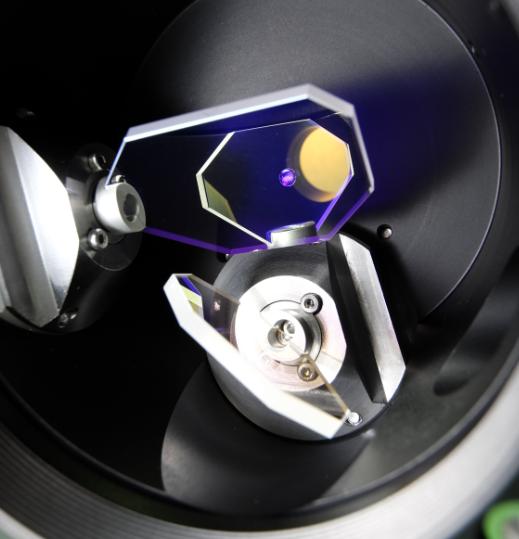

rhothor™ Smart Deflector

Smart Deflectors use Moving Coil Technology to offer State of the Art Performance in Laser Deflection

Runs aperture 10, 15 and 20mm mirrors
Patented moving coil drive
Low inductance for superior speed
Digital regulator running at 1.5 µsec cycle time
Single coax (Shared Data Power connection)
In average 2 Watt/axis power consumption
20 bit system resolution
Low long term drift (typical 12 µrad/8hours)
Spring preloaded hybrid bearing system
Field replaceable mirror

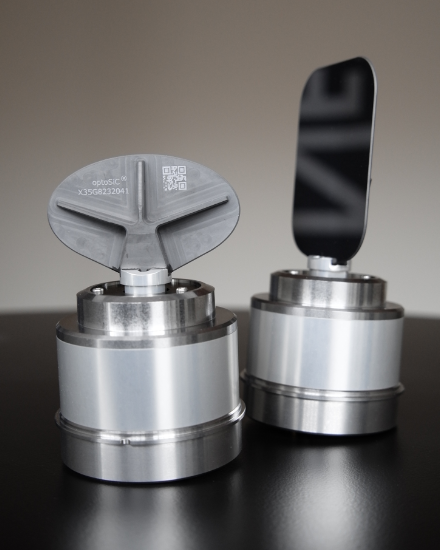

rhothor™ Smart Deflector for Larger Apertures

rhothor brings benefits of Moving Coil Technology to Larger Apertures

Runs SiC aperture 30 and 35mm mirrors
Patented moving coil drive
Low inductance for superior speed
Digital regulator running at 1.5 µsec cycle time
Single coax (Shared Data Power connection)
In average 3 Watt/axis power consumption
20 bit system resolution
Low long term drift (typical 12 µrad/8hours)
Spring preloaded hybrid bearing system
Field replaceable mirror

Datasheet RLA

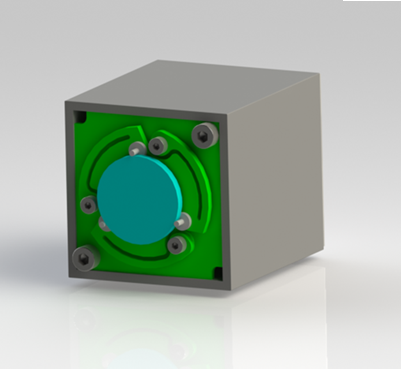

Cyclops™ actuator

Multi axis servo allows angle control of a single mirror in 2 directions

Cyclops™ is a single mirror dual axis system. The size of the mirror is greatly minimised compared with a classical 2 motor - 2 mirror laser deflection system. Therefor Cyclops™ easily outperforms traditional scan system at a fraction of their cost.

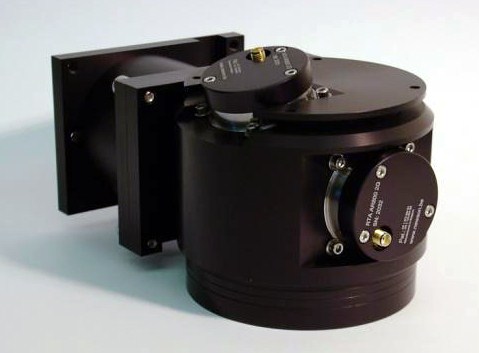

Modularity in design

Build your deflection system as an integral part of your application

Newson provides different modules for beam delivery systems, build around the rhothor™ Smart Deflector as key block. This modularity allows easy integration, custom branding and supports specific machine layouts. For ease of use complete premounted deflection systems are also available.

Dual axis system are available for aperture 10, 15 and 20 mm. For the aperture range 25 to 30 mm Cyclops™, the single mirror actuator is mounted inside a mount block.

3D Laser Deflection

Elevathor™, an axial lens shifter provides extra dimension

For laser applications which need a changeable focus depth, an Elevathor™ module can be mounted in front of our deflection system. It is a two lens system (1 moving and one fixed lens). The moving lens can shift 4mm mechanically which is optically enlarged by the lens setup.

The Z-shifter, which also supports the SDP protocol, has a linear spring bearing for unlimited lifetime and is mounted with user supplied optics for maximal flexibility.

rhothor™ Front-Ends

Front-Ends provide an easy interface between Smart Deflectors and third party steering electronics.

To maximize the ease of use, several Front-End devices are available for zero overhead connection of Smart Deflector to third party electronics. Those embedded and connector sized interface modules combine setpoint data connection with 12V power supply into the single coax connection towards the Smart Deflector.

Supported interface standards include: XY2-100, 5V analog, 10V analog, SPI and USB.

Controllers & Software

Build on more then 20 years experience in steering technology, Newson provides three axis steering boards and software.

3 coax outputs for direct connection
USB or Ethernet interface controller
XY2-100 output controller for third party deflection systems
IO signals to control laser and peripherals
Stand-alone, MOTF and Master/Slave support
Directional multiphase wobble functions
Add-ons for easy connection with CAN, UART or bus controlled lasers
License free software including diagnose software, DLL and SDK

Calibration Systems

Beacon™, automated calibration tool.

Beacon™ offers a new solution to calibrate deflection heads. It is based on a measuring plate, that can measure all errors introduced by the deflection head, optical path, lenses, barrel/pincushion, ...

The measuring process is done by using the laser to scan in focus over the measuring holes.

Beacon™ technology is available for all deflection systems and due to its modular design fast integration is possible.

Beacon-CU16 (Controller)

Mirror Exchange Tools

Mirrors can be easily exchanged with a Do It Yourself mirror replacement kit

USB powered stick for motor tune and diagnostic
Mirror alignment and fixing tool
Reduce your support stock
Fast in-field support possible
Step-by-step guide
Fastly change between mirrors with different coatings

Mirror Exchange Manual

Application Demonstration

CUA32 hardware synchronizes high speed "on-the-fly" laser scanning with XY stage.

CUA32 enables infinite field laser marking by controlling stage stepper drivers using step-direction interface. CUA32 offers hybrid control for processes like laser direct imaging, laser engraving, laser ablation, laser surface cleaning ...
